Thuis /Producten/Keukenwasmachine/High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal

High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal

1 set
MOQ
negotiable
Prijs
High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Database met lasersnijprocessen: Database met lasersnijprocessen
Lasergeneratersysteem: Max 3000W
Machinetype: Roll -type vezel lasersnijmachine
Systeem: Servo
Spanning: 380V/220V optioneel
Dimensie (L*W*H): 2200*2400*4200mm
Maximale positioneringssnelheid: 100m/min
Motorkracht (kW): 30 kW
Markeren:

CNC laser cutter for stainless steel

,

precision sheet metal cutter

,

kitchen sink laser cutting machine
Basis informatie
Plaats van herkomst: Guangdong, China
Merknaam: Star Power
Certificering: CU,ISO
Modelnummer: YZ28G0200T
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: metalen frame met film
Levertijd: 1 maand
Betalingscondities: L/c, d/p, t/t
Levering vermogen: 100 set/sets per maand
Productomschrijving
High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal
Key Specifications
Laser Generator System MAX 3000W
Machine Type Roll type fiber laser cutting machine
System Servo
Voltage 380V/220V Optional
Dimensions (L×W×H) 2200×2400×4200mm
Maximum Positioning Speed 100m/min
Motor Power 30kw
Precision Cutting Performance
This high-precision CNC laser cutter delivers micron-level precision for stainless steel processing. Equipped with a high-stability fiber laser source and imported CNC system, it achieves ±0.01mm positioning accuracy and ±0.005mm repeat positioning accuracy.
Capable of cutting stainless steel sheets from 0.1-18mm thickness, it handles complex micro-holes, fine seams, and special-shaped structures with perfect accuracy, meeting stringent requirements for medical devices, electronic components, and precision hardware.

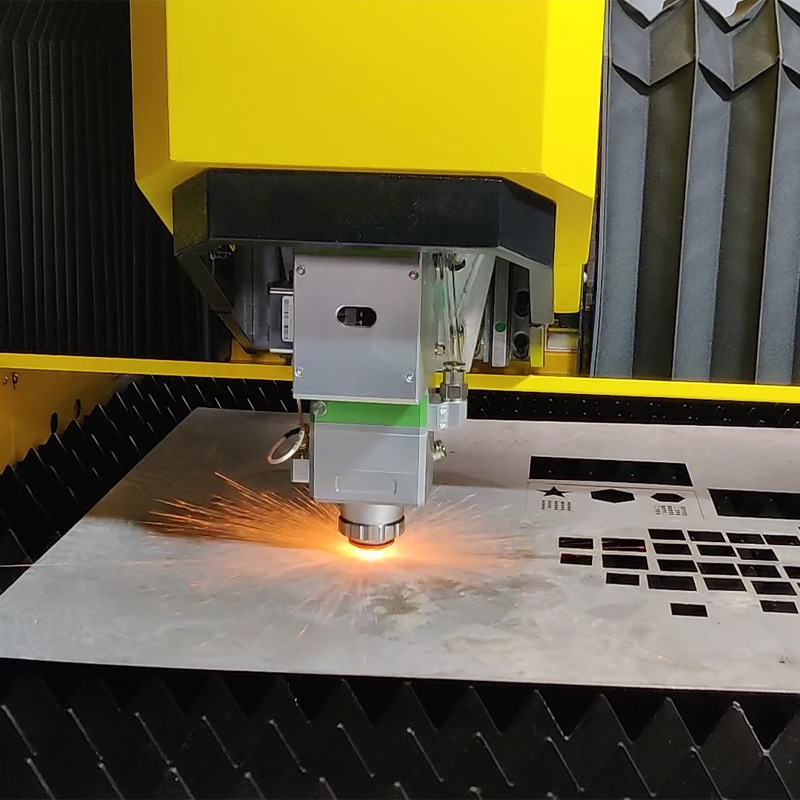

High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal 0
Advanced Features
  • High-definition visual positioning system for automatic sheet position calibration
  • High-precision rack-and-pinion guide rails with dual-drive servo system
  • Direct file reading from CAD/AI software for one-click cutting path generation
  • Low-loss laser optical path design maintains precision over long-term use
Technical Specifications
CNC System (Including Control Software) FSUT 2000E
Automatic Following System FSCUT
Database of Laser Cutting Processes Star Power Laser
Manual Laser Cutting Head Raytools
High-Flex Cable Energy Chains China
Remote Control Handle CC laser
Industry Applications
  • Furniture Manufacturing: Produces components of various shapes for unique designs
  • Mechanical Manufacturing: Precisely cuts complex shapes to improve component accuracy
  • Architectural Decoration: Enables fine processing of micro-components and metal casings
  • Aerospace: Meets extreme quality and accuracy requirements for critical components
  • Electronics Industry: Cuts circuit boards and achieves micro-component processing

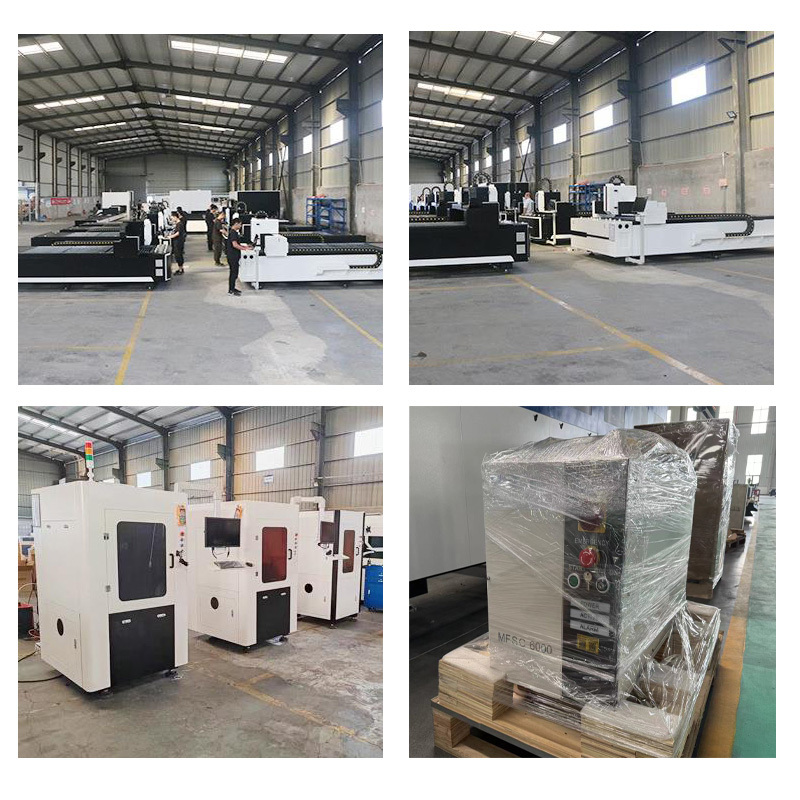

Secure Packaging
Our high-quality film packaging provides comprehensive protection against scratches, collisions, and dust intrusion during transportation and storage. The moisture-resistant film closely fits equipment contours, protecting all precision components including the fuselage, cutting head, and control panel.

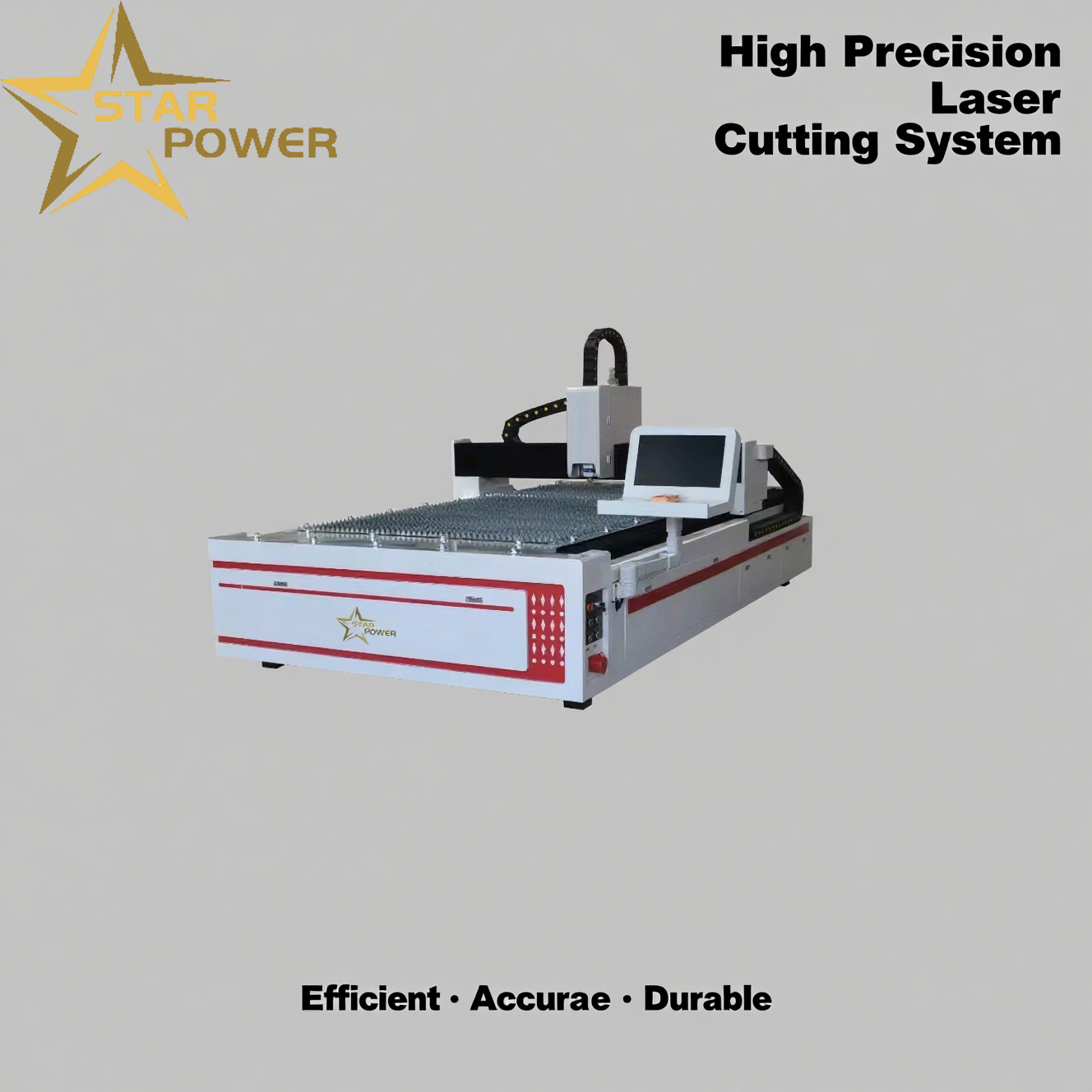

High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal 1
High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal 2
High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal 3
High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal 4
label:

OEM Ketel die Machine maken

ODM Ketel die Machine maken

CNC laser cutter for stainless steel
